Liftsmart CB08-i Counterbalance Stacker

Description

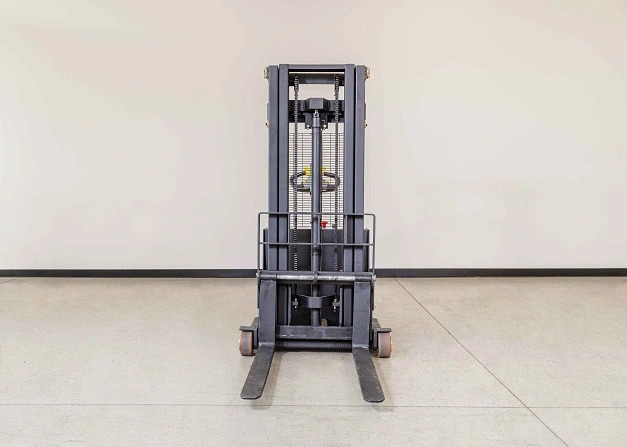

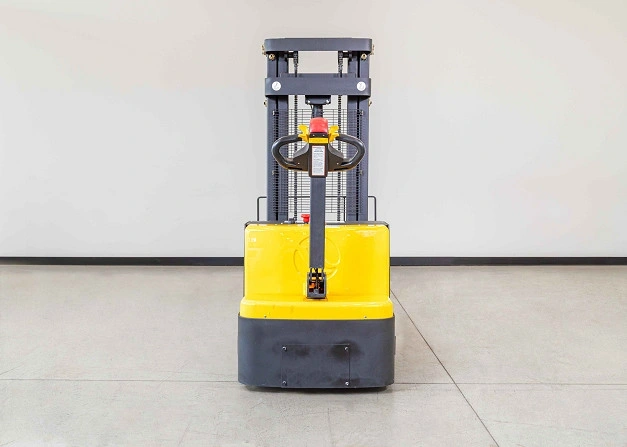

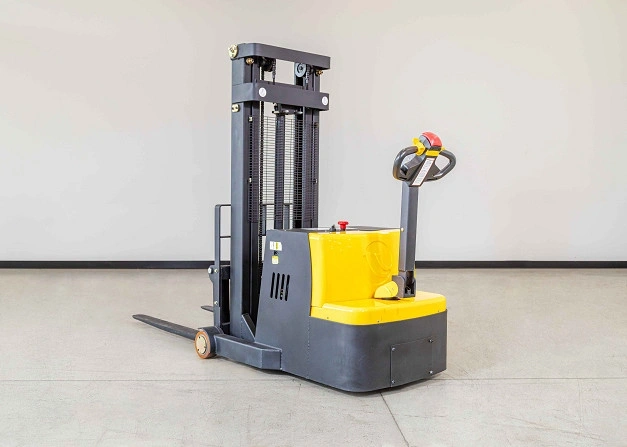

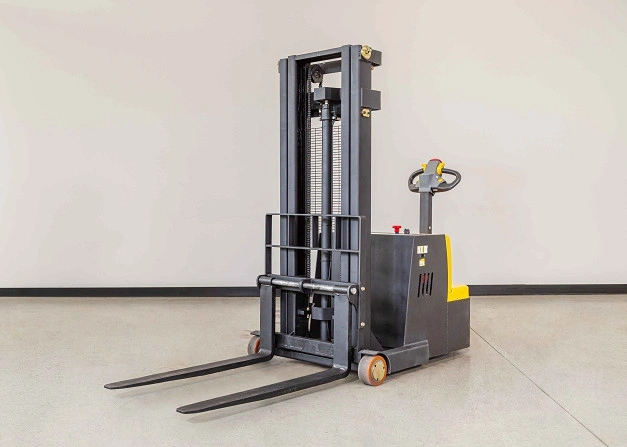

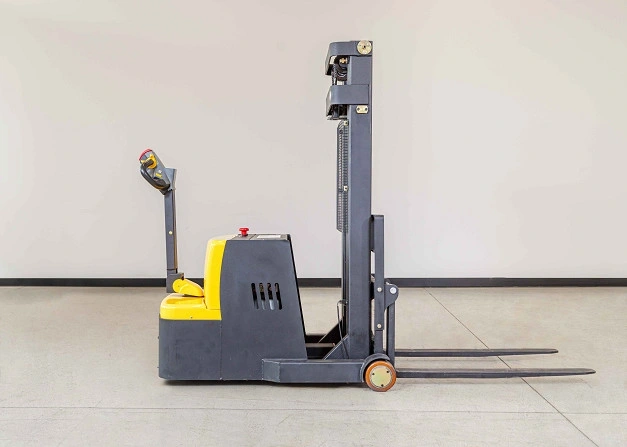

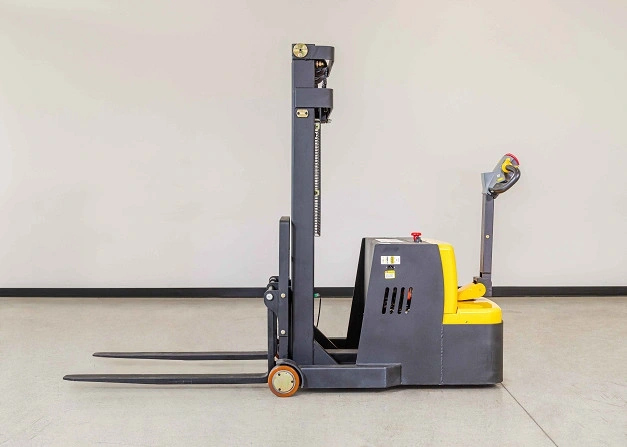

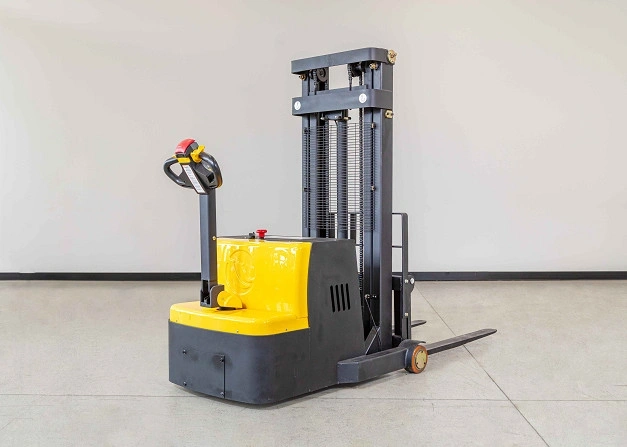

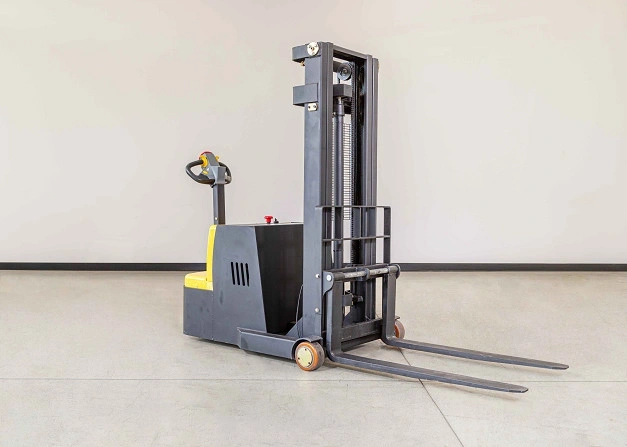

Liftsmart CB08-i Counterbalance Stacker

The Liftsmart CB08-i is a highly versatile and cost-effective pedestrian walkie stacker that seamlessly pairs the practical utility of a counterbalanced forklift with the compact footprint of a warehouse walkie jack. Engineered to move lighter loads up to 800 kg to a maximum height of 4,020 mm, this unit relies on a legless, counterbalanced design. Without straddle legs or support arms jutting out front, operators gain unhindered, three-sided access to loads and can maneuver tynes right up against trailers, conveyor lines, and tight workstations.

Key Features:

Patented Liftsmart Multi-functional intelligent handle

• Vehicle operation status display
• Quick error detection and error code display
• Visual maintenance information

Remote Control

• Ideal for picking up goods from trailers
• Operators can adjust the tyne height remotely to the ideal height for picking up loads

Safety Speed Control

• Unit travel speed is automatically reduced to 2km/h when the tynes are lifted to or above 500mm to increase safety whilst in transit

Design Features

• Adjustable forged forks with no support legs makes unit ideal to pick-up any type of pallet
• Light sensor interlock switch
• Turtle and rabbit speed shift via one touch button
• Large front wheels allow stacker to easily maneuver over uneven ground
• Compact design for operating in confined spaces
