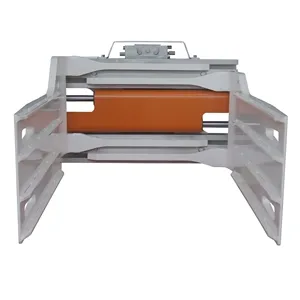

The 1900kg Capacity Bale Clamps enable forklift operator to clamp unpaletised loads. The Bale Clamp’s opening range can be designed to suit multiple load sizes.
Features:
• Independent Sideshift
• Maximum residual capacity due to minimum weight and lost load
• Robust Design
• Cylinder protection to prevent damage
• Excellent visibility
• Easy Installation
General Applications:
• Recycling
• Cotton Bales
• Wool Bales
• Textile Bales
• Metal Scrap Bales
450mm -1730mm Operating Range Class II Carriage mounting (to suit most 2 & 2.5 tonne forklifts)
Specifications
| Model | Mounting Class | Frame Width (mm) | Capacity @ Load Centre (kg@mm) | Opening Range (mm) | Arm Height (mm) | Arm Length (mm) | Weight (kg) | Lost Load (mm) | Horizontal centre of gravity (mm) |
|---|---|---|---|---|---|---|---|---|---|
| RBC27D-C004 | II | 1040 | 1900@500 | 450-1730 | 415 | 1194 | 465 | 127 | 401 |
